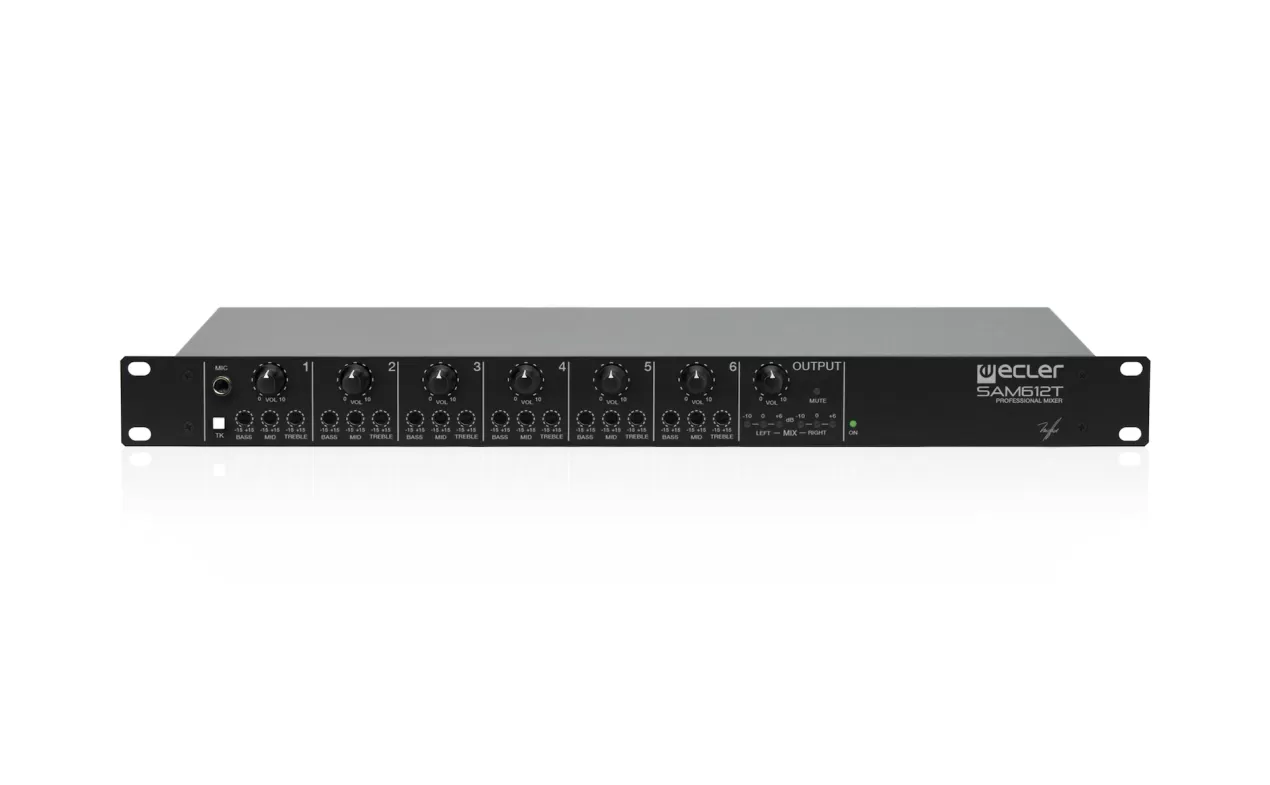

ECLER - media mixer SAM612T

ŠIFRA PROIZVODA: CSAM612T

Instalacijsko audio pojačalo u standardnom rack formatu, sa 6 MIC/LINE ST ulaza + 1 ST MIX ulaz i 1 ST MAIN izlaz + 1 ST REC izlaz.

Svaki ulaz ima namjensku 3-pojasnu kontrolu tona, značajku koja je ključna za postizanje savršenog mikrofonskog miksa u instalaciji.

740.00 €

Fiksni tečaj konverzije: 1 € = 7,53450 kn

Za sve naše veleprodajne kupce unutar Zagrebačke županije vršimo BESPLATNU DOSTAVU na Vaš kućni prag !!!

iznad 66,36 € (500 Kn) dostava je besplatna na području CIJELE HRVATSKE!

š: x v: x d: x m: kg

6 input channels, 2 main outputs 19” installation mixer
Micro sensitivity level can be adjusted on the back panel
+18V Phantom Power available in all “MIC” inputs
Direct micro input on front panel, channel 1
Includes a talkover assigned to “INPUT 1” with internal release time adjustment
Three-band tone controls for each channel, accessible with a screwdriver
Vu-meter for the mix signal
Two internally adjustable output levels
Recording output
Direct access to the mixing bus allowing you to connect another mixer and increase the number of inputs
Remote MUTE control affecting all inputs for connecting fire detection systems other safety devices. Internally programmable “NO / NC” (normally open, normally closed)
Mono/stereo switch
Number of input ports
6, MIC/LINE level
1 ST MIX1 direct MIC input on front panel
Connection type
MIC: 3-pin Euroblock
LINE/MIX: double RCA
Input sensitivity
IN 1-6 (MIC/LINE): ±15dB
THD + Noise
LINE <0.005%
MIC BAL <0.04%
CMRR
MIC >60dB @ 1 kHz
Phantom power
+18VDC
Number of output ports
1 ST MAIN
1 ST REC
Connection type
Main: 3-pin Euroblock
REC: double RCA
Output impedance
OUT: 600Ω
REC: 10kΩ

Specifikacije proizvoda
