Name: ECLER - digitalni matrix MIMO88
Brand: ECLER

ECLER

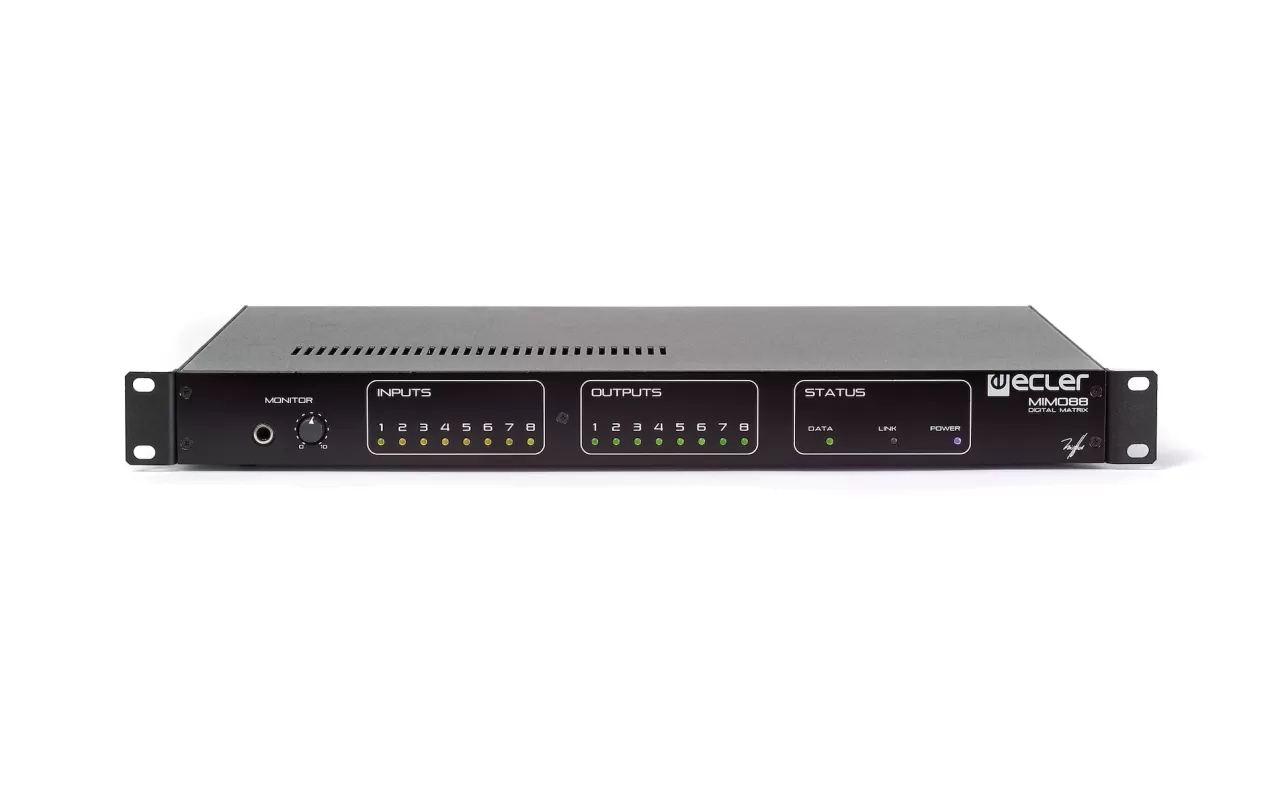

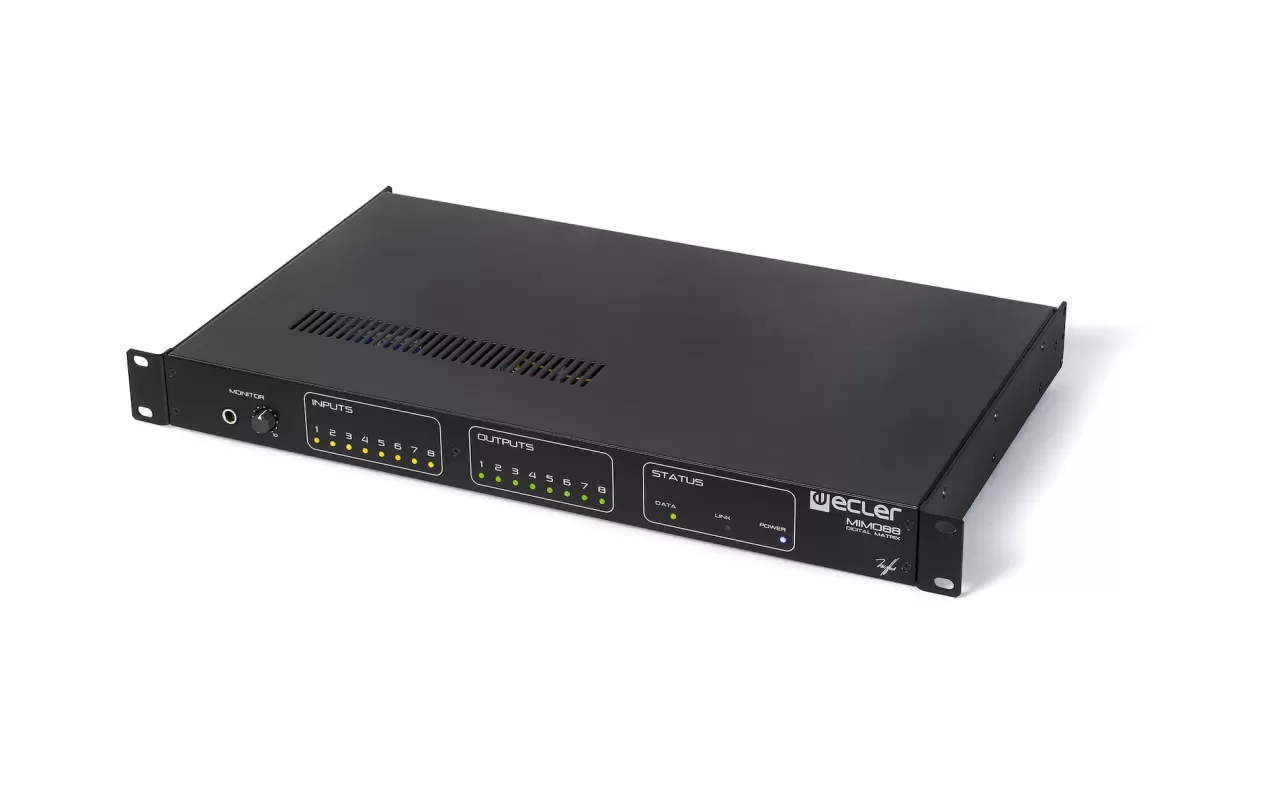

ECLER - digitalni matrix MIMO88

ŠIFRA PROIZVODA: CMIM088

Digitalni matrix s 8 ulaza i 8 izlaza, potpuno programabilna i poveziva s drugom jedinicom kako bi postala matrica 16x16, sa stvarnim usmjeravanjem od bilo kojeg ulaza do bilo kojeg izlaza.

3383.75 €

Fiksni tečaj konverzije: 1 € = 7,53450 kn

Za sve naše veleprodajne kupce unutar Zagrebačke županije vršimo BESPLATNU DOSTAVU na Vaš kućni prag !!!

iznad 66,36 € (500 Kn) dostava je besplatna na području CIJELE HRVATSKE!

KATEGORIJA

Ozvučenje
Procesori
Media mikser / player

DIMENZIJE

š: x v: x d: x m: kg

TAGOVI

ecler

Matrix

SPECIFIKACIJE

Expandable to 16 inputs / 16 outputs to become a real 16 x 16 matrix

Fully programmable and controllable via EclerNet software

UCP (User Control Panels) remote control system, compatible with WPNETTOUCH and third-party devices, such as computers, tablets, smartphones, etc.

TP-NET protocol compatible, for third-party control systems integration

DSP processing: signal generator, delays, full parametric EQ filters at inputs and outputs, inputs noise gate, level, mute, phase, vu-meters, outputs compressor / limiter,ducking (priority & overriding), virtual and physical paging stations management,automatic mixer function, presets save & recovery, scheduled events triggering, etc.

FREQUENCY SHIFTER function to avoid acoustic feedback (Larssen Effect), available for each INPUT channel

WPNET4KV and WPNET8K compatible control panels (using specific retro-compatible Firmware).

Sampling rate

48kHz

Resolution

24bit AKM

Latency

<2.9ms (+1ms for 16x16)

Frequency response

5Hz to 24kHz (-3dB)

Dynamic range

AD:110dB, DA: 115dB

Number of input ports

8+8, Mic/Line

Connection type

Terminal block (symmetrical)

Input sensitivity

-50dBV to +10dBV in 0.5dB step

Input impedanc

Balanced, >4kΩ

Max input level

+27dBV = +30dBu

THD + Noise

THD+Noise @ 1kHz, 0dBV input (line) <0.004%
THD+Noise @ 1kHz, -40dBV input (mic.) <0.008%

CMRR

65dB typ.

Phantom power

+42VDC, 5mA max. software switched
