KATEGORIJA

• Ozvučenje
• Zvučne Kutije
• Instalacijski zvučnici

DIMENZIJE

š: x v: x d: x m: kg

TAGOVI

Zvučnici

Ugradbeni Zvučnici

ecler

SPECIFIKACIJE

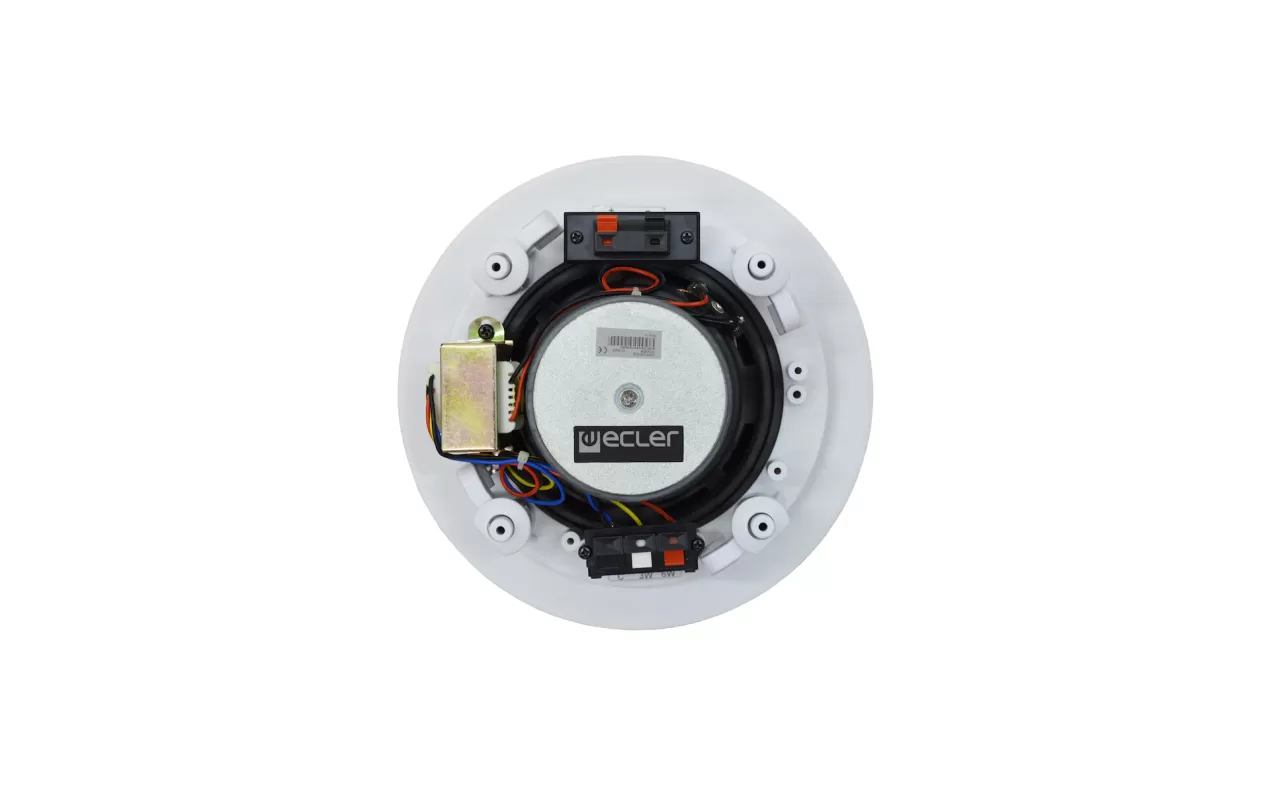

• Two-way ABS speaker, 20 WRMS
• 5,25" woofer + 0,75" tweeter
• Built-in audio transformer for 70/100 V use
• Clip-type input terminals and low impedance / high impedance power tap selector
• EASE files available

• Effective Freq. Range

  65 Hz-20 kHz (-10dB)

  Coverage angle / Dispersion

  151°x151° (HxV)

  Power handling

  20 W RMS / 80 W Peak

  Sensitivity

  89 dB (1W/1m)

  Maximum SPL

  102 dB continuous / 108 dB peak

  Power options (Hi Z Multi-tap)

  100V: 6W / 3W / 8Ω
  70V: 6W / 3W / 8Ω

  Recommended amplifier power

  40 W RMS

• Connection type

  Clip-type input terminals

  Power type selector

  Power tap selector

  Installation options

  In-ceiling, in-wall

  Enclosure material

  ABS

  Operating temperature

  Min: -10°C ; 14°F
  Max: 40°C ; 104°F

  Operating humidity

  <85% HR


  Storage temperature

  Min: -10°C ; 14°F
  Max: 40°C ; 104°F

  Storage humidity

  <90% HR


  External diameter

  202 mm / 7.95"

  Internal diameter

  164 mm / 6.46"

  Required depth

  65 mm / 2.56"

  Ceiling thickness

  5mm / 0.19" min
  30mm / 1.18" max

  Finished colour

  White (RAL 9003)

  Weight

  1.0 kg / 2.2 lb

  Pieces per box

  1 unit

  Shipping dimensions

  210 x 210 x 80 mm / 8.27 x 8.27 x 3.15 in. (WxHxD)

  Shipping weight

  1.2 kg / 2.65 lb
