KATEGORIJA

• Ozvučenje
• Media mikser / player

DIMENZIJE

š: x v: x d: x m: kg

TAGOVI

ecler

SPECIFIKACIJE

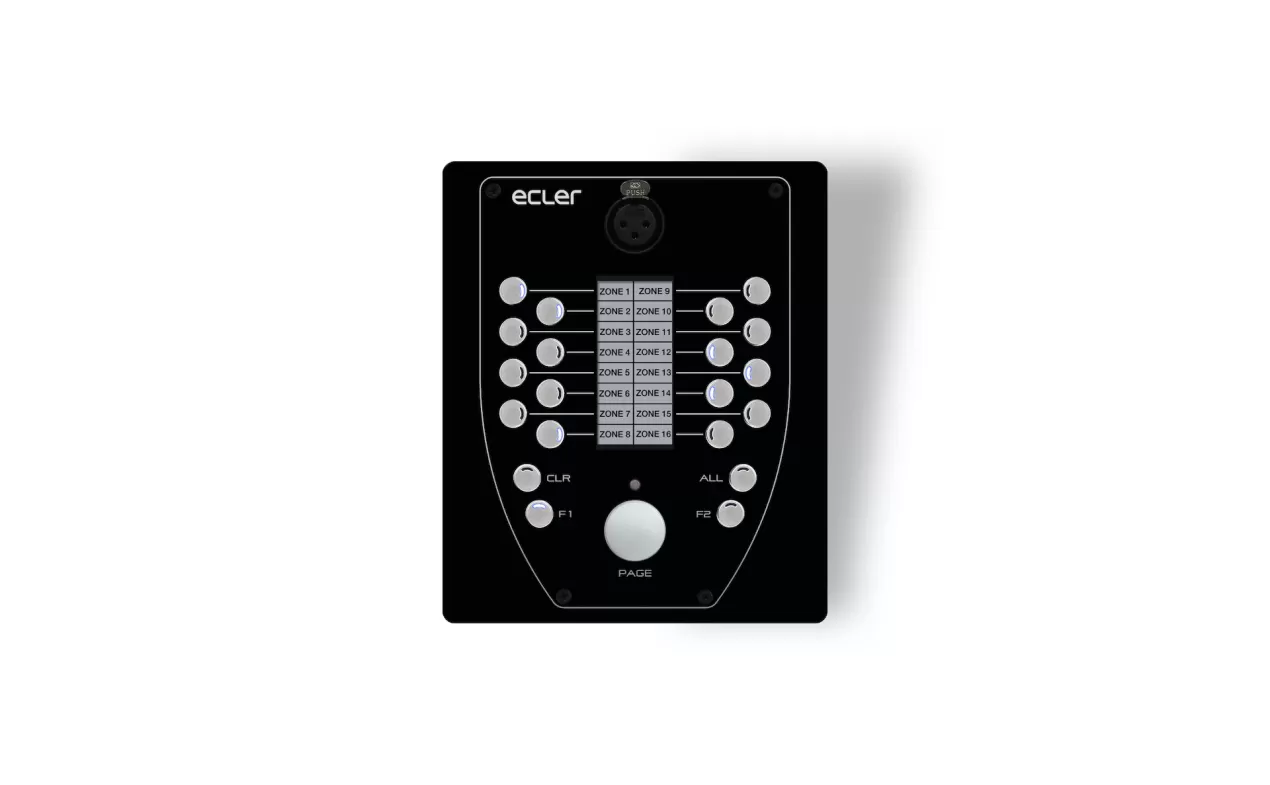

• 20 mechanical keys with integrated LED status indicator (paging zone selection management)
• 1 mechanical key with adjacent LED indicator (message activation, PAGE key)
• Electronic ink display (shows paging zone names)

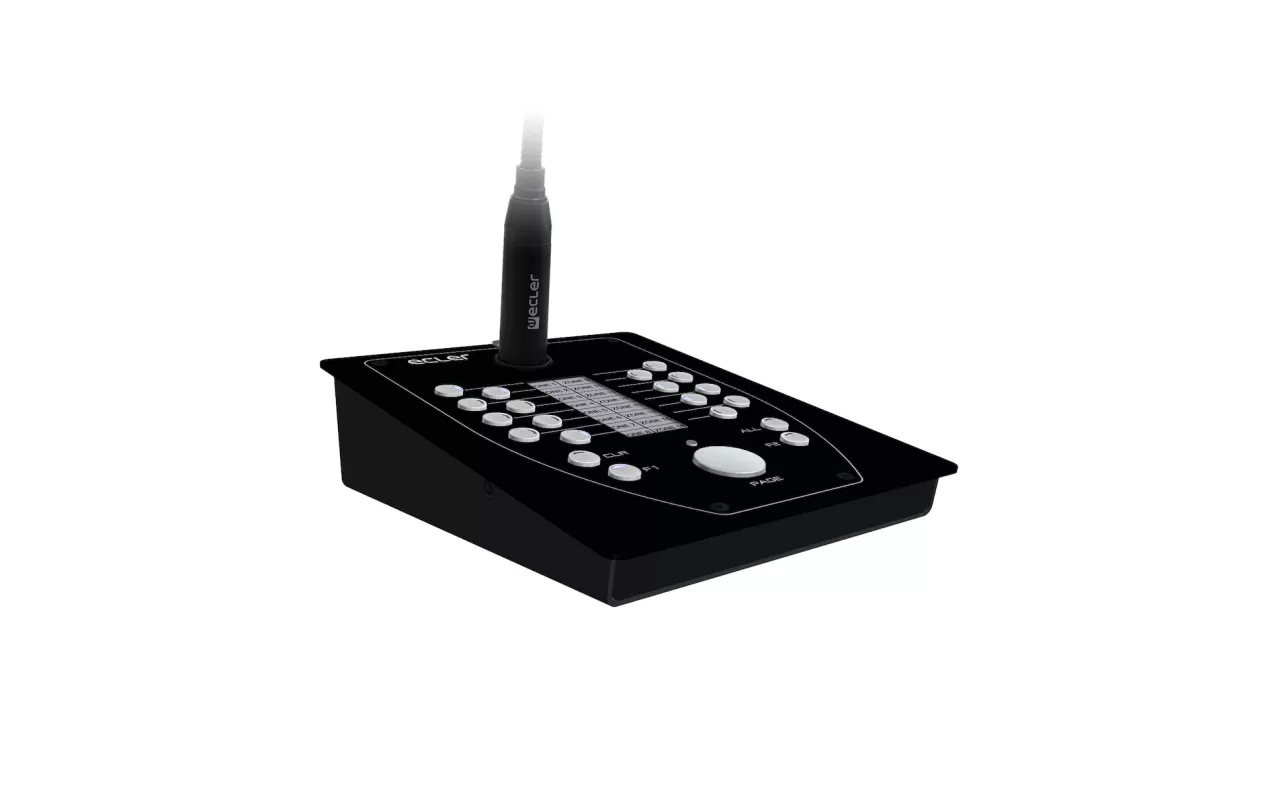

• Gooseneck microphone, with standard XLR connector
• Management of up to 16 paging zones
• RJ45 connector for single CAT5 or higher cabling (point-to-point), including power, audio output signal (picked up by the microphone) and digital control bus between the HUB unit and the eMPAGE station
• Connector for backup power supply (optional)
• Two eMPAGE units, with different or equal priority levels, can work simultaneously on the same HUB zoner
• Programming of paging station(s) functionality from the web application embedded in the HUB: enabled paging zones, chime melodies, priorities, programmable keys, etc.

• Number of output channels

  1 (picked up by the microphone)

  Number of paging zones

  16

• Type

  Paging station

  Installation options

  Desktop

  Operating temperature

  Min: -10°C ; 14°F
  Max: 40°C ; 104°F

  Operating humidity

  <85% HR

  Storage temperature

  Min: -10°C ; 14°F
  Max: 40°C ; 104°F

  Storage humidity

  <90% HR

  Included accessories

  Windscreen for Microphone, jumper for internal connection and RJ45 to Euroblock adapter

  Dimensions

  150 x 50 x 180 mm / 5.91 x 1.97 x 7.09 in. (WxHxD) (microphone excluded)

  Weight

  0.9 kg / 1.98 lb
