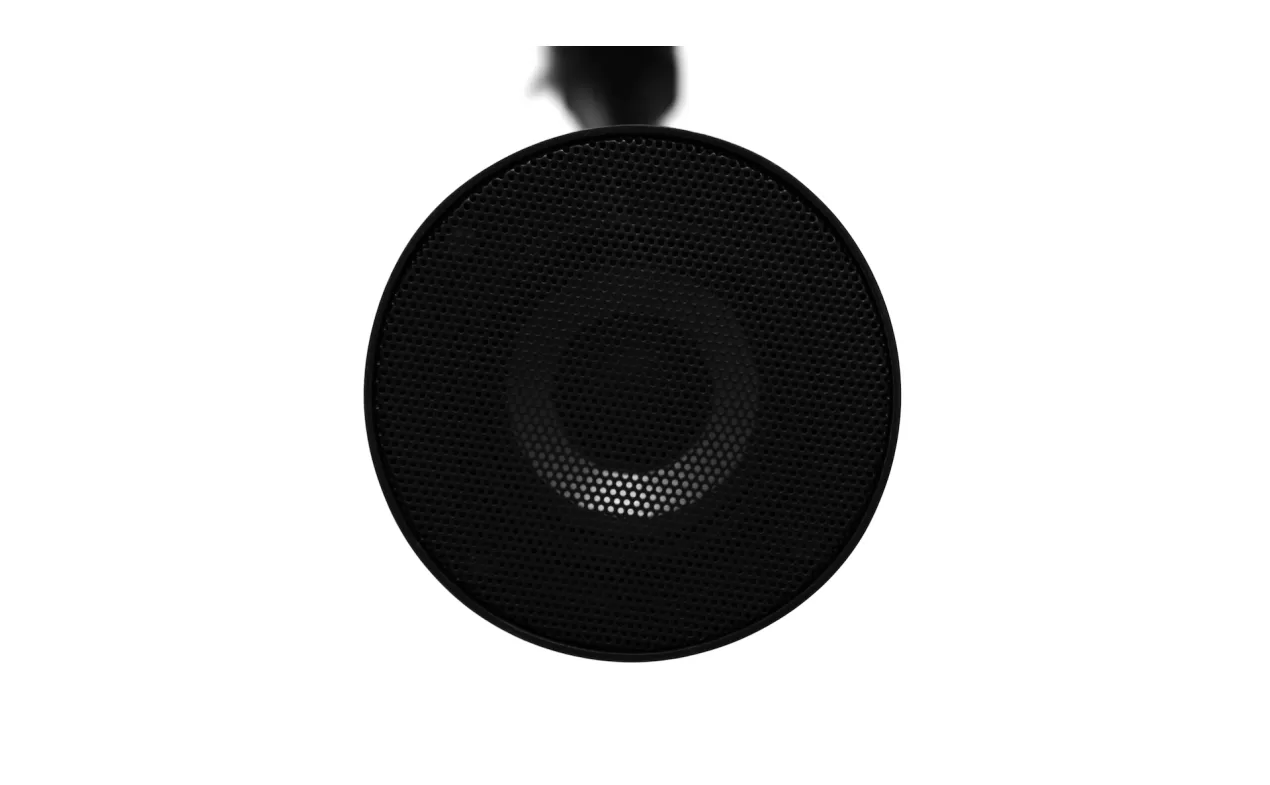

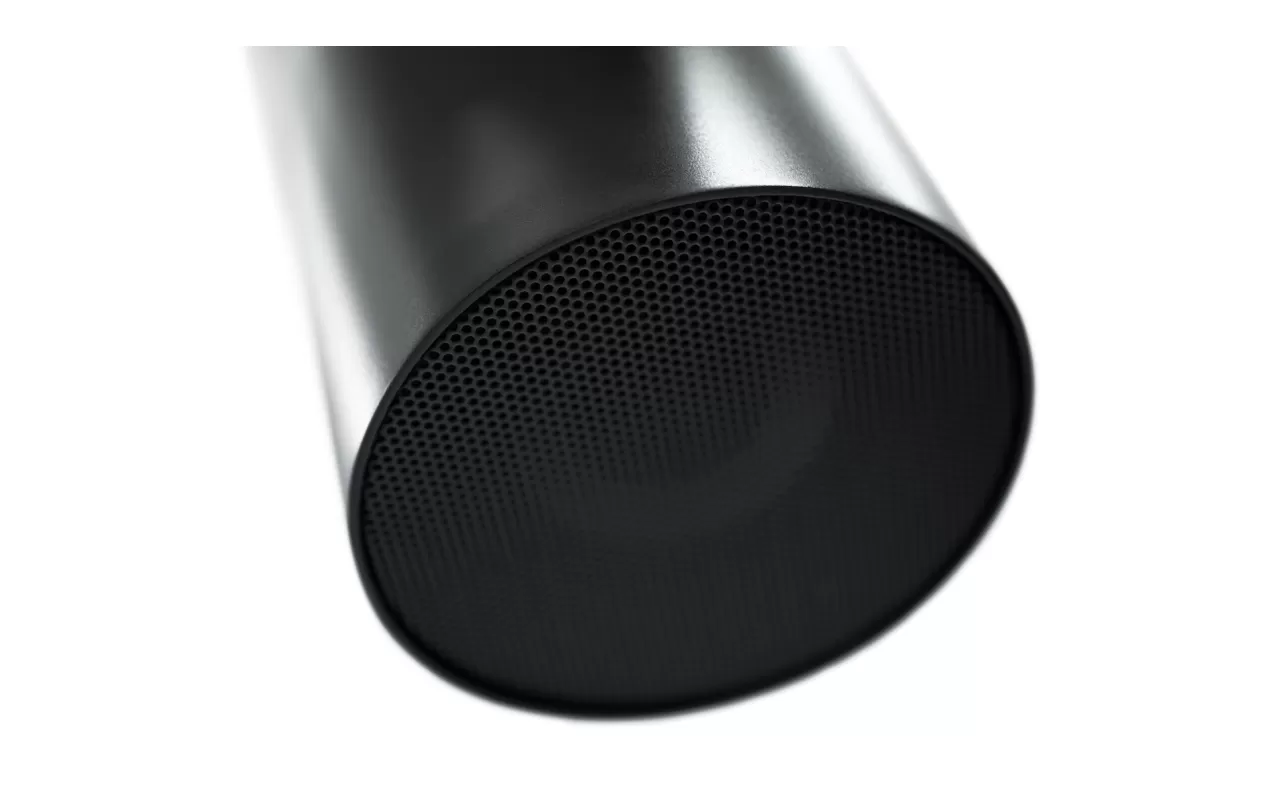

Name: ECLER - TRAIL103BK - zvučnik u obliku lampe
Brand: ECLER

ECLER - TRAIL103BK - zvučnik u obliku lampe

ECLER

ECLER - TRAIL103BK - zvučnik u obliku lampe

ŠIFRA PROIZVODA: CTRAIL103BK

Zvučnik u obliku lampe, sa sustavom instalacije koji je kompaktibilan sa stropnim svjetlosnim tračnicama, kao i površinskom montažom, montažom na nosače i td.

Dostupne bijele i pozadinske boje.

278.75 €

Fiksni tečaj konverzije: 1 € = 7,53450 kn

Za sve naše veleprodajne kupce unutar Zagrebačke županije vršimo BESPLATNU DOSTAVU na Vaš kućni prag !!!

iznad 66,36 € (500 Kn) dostava je besplatna na području CIJELE HRVATSKE!

KATEGORIJA

Ozvučenje
Zvučne Kutije
Instalacijski zvučnici

DIMENZIJE

š: x v: x d: x m: kg

TAGOVI

Zvučnici

Ugradbeni Zvučnici

ecler

SPECIFIKACIJE

3" driver

Mounting options (included): ceiling light rails, surface mount and truss/threaded bar adapter

Low impedance connection: 4Ω

High impedance connection: 15/30W selector

Available in white (RAL 9003) and black finish (RAL 9005)

EASE files available

Effective Freq. Range

115 Hz-20 kHz (-10dB)

Coverage angle / Dispersion

180°x180° (HxV)

Power handling

15 W RMS / 60 W Peak

Sensitivity

83 dB (1W/1m)

Maximum SPL

95 dB continuous / 101 dB peak

Power options (Hi Z Multi-tap)

Lo-Z: 4Ω; Hi-Z: 15/30 W @ 100V

Recommended amplifier power

30 W RMS

Connection type

Clamp terminals + Euroblock terminals

Installation options

Ceiling light rails, surface mount, truss mount

Mounting system

Cabinet

Rail fixing system

4 wire 3 circuit track system

Compatible rail systems

Global Track Pro or compatibles

Operating temperature

Min: -10°C ; 14°F
Max: 40°C ; 104°F

Operating humidity

<85% HR

Storage temperature

Min: -10°C ; 14°F
Max: 40°C ; 104°F

Storage humidity

<90% HR

Included accessories

Mounting accessories

Finished colour

White (RAL 9003) or black (RAL 9005)

Dimensions

96x110mm / 3.78"x4.33" (ØxD)

Weight

1.0 kg / 2.2 lb

Pieces per box

Unit

Shipping dimensions

240 x 140 x 160 mm / 9.45 x 5.51 x 6.3 in. (WxHxD)

Shipping weight

1.4 kg / 3.09 lb
