KATEGORIJA

• Ozvučenje
• Dodatni audio pribor

DIMENZIJE

š: x v: x d: x m: kg

TAGOVI

Bluetooth

SPECIFIKACIJE

• Bluetooth® receiver in WPa wall panel format (standard UE).
• Bluetooth® class 1 (range 25m), version V5.0. A2DP profile.
• Balanced stereo Euroblock output dual-mono configurable.
• PAIR button with blue LED activity indicator. This can be turned off in dark rooms so as not to disturb.
• Easy device name configuration, PIN, stereo/mono output and other adjustments via the Ecler Bluetooth® Manager application for Windows devices.
• External 24VDC power supply (WP24-PSU, optional), via terminal strip or via eMCONTROL1 power supply bus
• GPO: to indicate that an A2DP audio connection is active (automatic priority management)
• USB-C configuration port: not visible, behind the front cover. Easily accessed by removing only the front cover; it is not necessary to remove the device from the wall. USB-C cable not included
• Compatible with round electrical boxes that are 60mm in diameter.

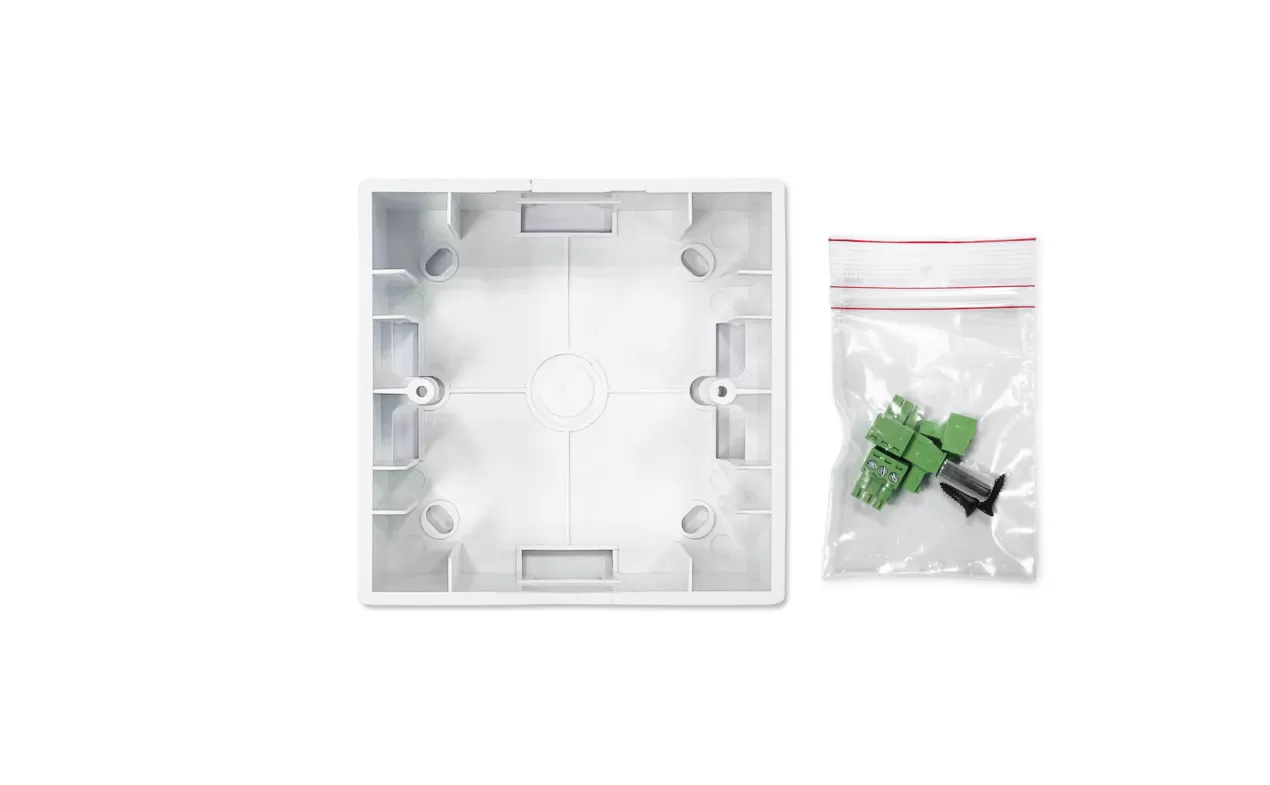

• Surface mounting box included
• Compatible with WPa2FMBOX and WPa2SMBOX mounting boxes
• It can be combined with an eMCONTROL1 to work as a remote audio input for HUB Series digital zoner

• Type

  Bluetooth® Receiver

  Format

  Double Gang EU Forma

  Installation options

  Surface, In-wall


  Enclosure material

  Zincor front panel, plastic frame

  Operating temperature

  Min: 0°C ; 32°F
  Max: 35°C ; 95°F

  Operating humidity

  <85% HR

  Storage temperature

  Min: -10°C ; 14°F
  Max: 50°C ; 122°F

  Storage humidity

  <90% HR

  Included accessories

  Euroblock connectors, Surface mount box,
  Warranty card, Getting started card, Magnet and
  Screws

  Optional accessories

  WP-PSU 24V

  Finished colour

  White (RAL 9003)

  Dimensions

  86 x 86 x 25 mm / 3.4 x 3.4 x 1 in (WxHxD)

  Weight

  0.14 kg / 0.3 lb


  Pieces per box

  1 unit

  Shipping dimensions

  21.5 x 7.5 x 12 mm / 8.5 x 3 x 0.5 in (WxHxD)

  Shipping weight

  0.29 kg / 0.64 lb
