SPECIFIKACIJE

• Supports HDMI 2.0 and the HDMI video resolution up to 4K@60Hz 4:4:4 HDR.
• HDCP 2.2 and 1.4 supported.
• Extends 4K signals to distances up to 40 meters (131 feet) and 1080P signals to distances up to 70 meters (230 feet) over a single CATx cable.
• Supports video resolution up-scaling, the 1080P input can be automatically upgraded to 4K output.
• SPDIF out on receiver for source audio de-embedding.
• 18Gbps high bandwidth.

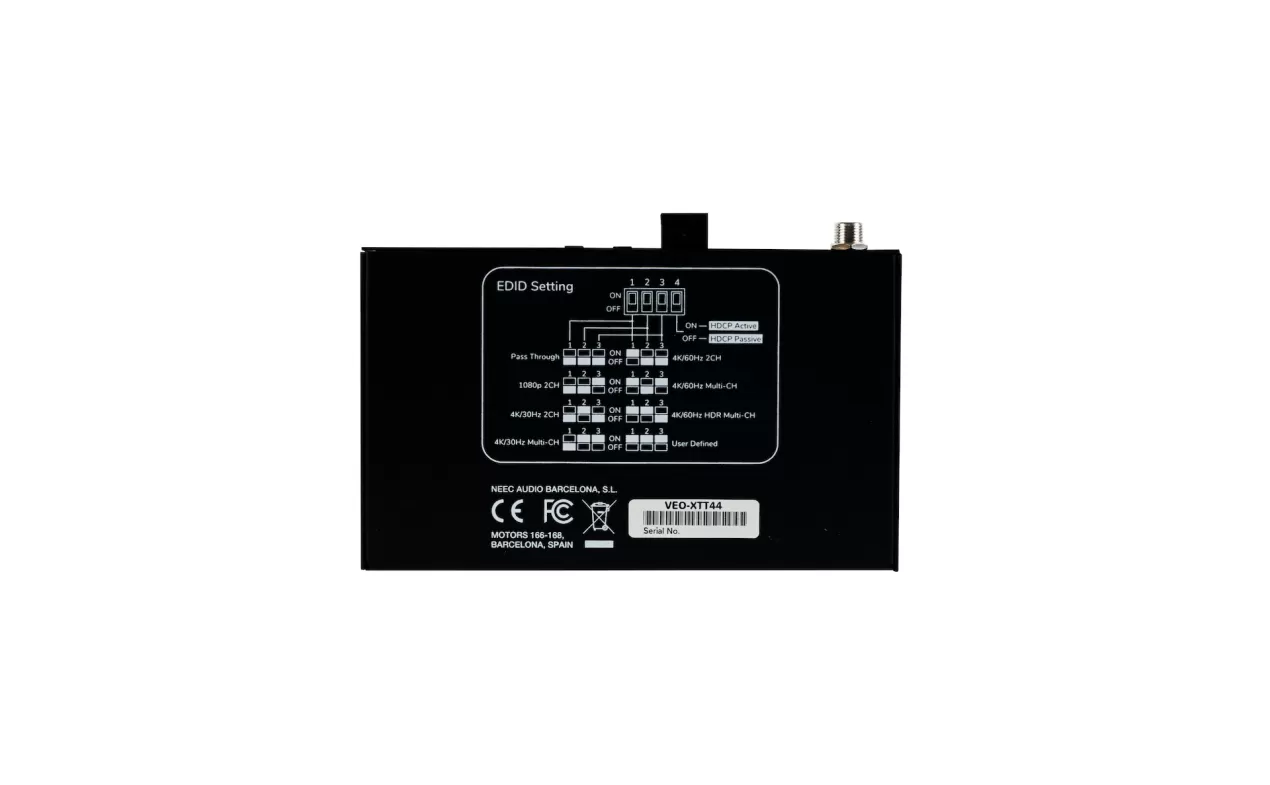

• Advanced EDID management: multiple built-in EDID settings or customized EDID can be selected.
• Test pattern provides a built-in 4K/1080P image for troubleshooting.
• Bidirectional IR, RS-232 and 24V PoH.
• Supports ARC.
• Supports CEC pass-through.
• Provides LEDs to indicate the current operating status.
• Firmware upgrade by Micro-USB port.
• ESD protection.

• Operating temperature

  Min: -5°C ; 23°F
  Max: 55°C ; 131°F

  Operating humidity

  10 to 90 % RH (no condensation)


  Installation options

  Desktop - TBC

  Included accessories

  2x TX Mounting Ears with 4 Screws, 4 x TX Rubber feet, 3-pin Terminal Block, Power Adapter (24V DC 1.25A), Quick guide and warranty

  Dimensions

  140 × 20 x 84 mm / 5.51 x 0.79 x 3.31 in. (WxHxD)

  Weight

  0.275 kg / 0.606 lb

  Shipping dimensions

  175 x 119 x 110 mm / 6.89 x 4.69 x 4.33 in. (WxHxD)

  Shipping weight

  0.6 kg / 1.32 lb

  Chassis material

  Metal

  Finished colour

  Black
